LED strip COLORS Chip-24V-IP20 9.6W 750Lm 3000K 5m (PD128-24V-8mm-WW)

LED strip COLORS Chip-24V-IP20 9.6W 750Lm 3000K 5m (PD128-24V-8mm-WW)
COLORS
Type of goods
LED strip
Waterproof Rating
IP20
LED type
Chip
LED Quantity na 1 m
128 pcs
Warranty period
5 years
Light colour
Warm white
Luminous flux na 1 m
750 Lm
Supply voltage
24V
all characteristic

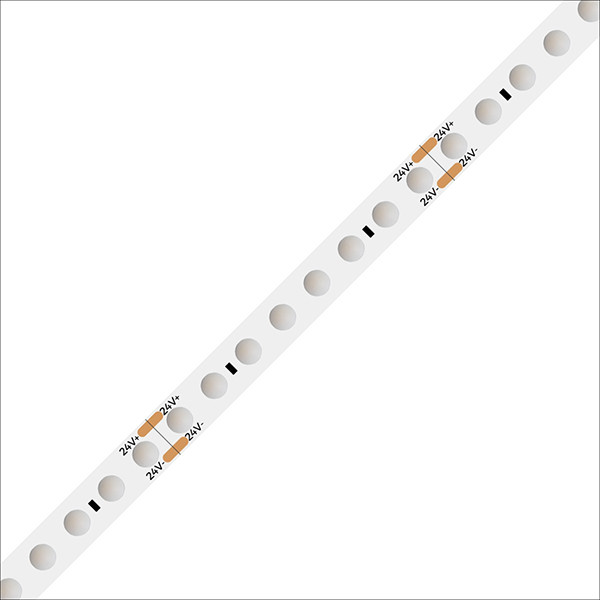

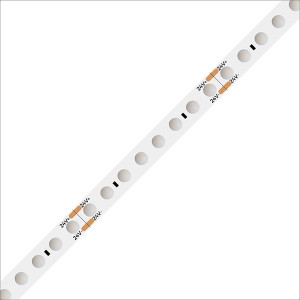

LED strip COLORS Chip LEDs PD128-24V-8mm-WW

  • This LED strip is an ideal solution for lighting various interiors, providing quality, reliability and aesthetic appearance, suitable for lighting furniture and decorative lighting.
  • High-quality CSP LEDs that provide high brightness and efficiency.
  • The maximum radiation angle is 180°, which allows you to create uniform lighting.
  • Manufacturing "bovine to bovine", which ensures a minimum number of welded joints or their complete absence.
  • Solderless connection for easy installation and use.

Technical characteristics:

  • Power: 9.6 W/m;
  • Color: neutral white 3000K;
  • Working temperature: -25 ~ 40°C;
  • Storage temperature: 75°C (maximum);
  • Color rendering index: CRI 90;

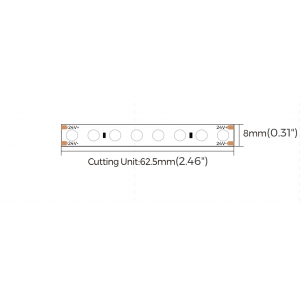

  • Multiplicity of the cut: 62.5 millimeters;
  • Flexible Printed Circuit Board (FPCB): Uses 2oz of copper to ensure reliable heat dissipation;
  • Color Consistency: SDCM <3 (IP20), ensuring color uniformity without significant differences;
  • Light distribution angle: 180°;
  • Product certification: UL, CE;

5 years warranty.

General
Type of goods
LED strip
Waterproof Rating
IP20
LED type
Chip
LED Quantity na 1 m
128 pcs
Cutting frequency
63 mm
Warranty period
5 years
Lighting
Light colour
Warm white
Colour temperature
3000K
Colour rendering index, CRI (Ra)
90
Luminous flux na 1 m
750 Lm
Effectiveness
78 Lm/W
Electrical
Supply voltage
24V
Power per 1 m
10 W
Rated current per meter
0,41 А
Dimensions
Length
5000 mm
Width
8 mm
Height
1,4 mm
