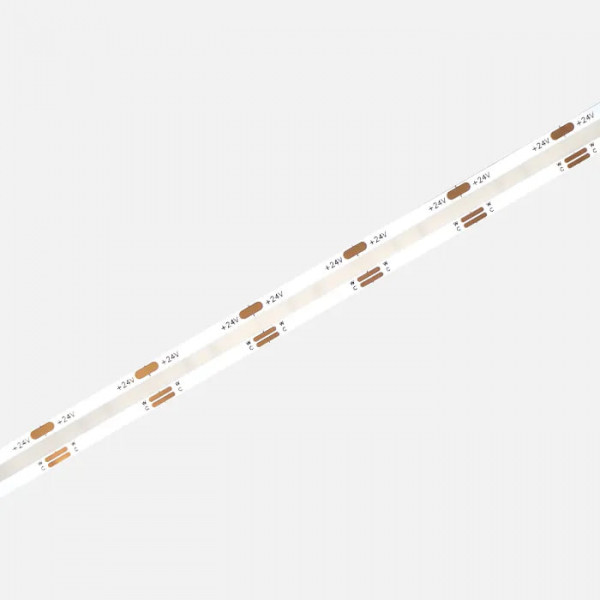

LED strip COLORS COB-24V-IP20 18W 2700+6500K 5m (DP17SWW-24V-10mm)

LED strip COLORS COB-24V-IP20 18W 2700+6500K 5m (DP17SWW-24V-10mm)
COLORS
$10.00
Add to Compare
Add to Wishlist
Type of goods
LED strip
Waterproof Rating
IP20
LED type
COB
LED Quantity na 1 m
576 pcs
Warranty period
5 years
Light colour
CCT
Luminous flux na 1 m
1500 Lm
Supply voltage
24V
all characteristic

Light stitch COLORS COB DP17SWW-24V-10mm



  • Wide cut of lightening ensures even lightening.
  • Suitable for use with different controllers .
  • High-acidity wood-framed board (FPCB) with high thermal conductivity and 3M adhesive.

Technical characteristics:

  • Input voltage: DC24V;
  • Maximum pressure: 19.8 W/meter;
  • Power range: 16.2~19.8 W/meter;
  • Nominal flow: 0.75A/meter ;
  • Typical pressure: 18 W/meter;
  • Operating temperature: -25~40°C, maximum body temperature (Tc): 75°C;
  • Multiplicity of cut: 27.8 millimeters;
  • Minimum bending diameter: Φ60 millimeters;
  • Installation: Fastening with additional 3M stitches;
  • Protection level: IP20;
  • Product certification: UL, CE, ROHS, ISO.

Warranty: 5 years.

General
Type of goods
LED strip
Waterproof Rating
IP20
LED type
COB
LED Quantity na 1 m
576 pcs
Cutting frequency
28 mm
Warranty period
5 years
Lighting
Light colour
CCT
Colour temperature
2700K-6500K
Luminous flux na 1 m
1500 Lm
Effectiveness
83 Lm/W
Electrical
Supply voltage
24V
Power per 1 m
18 W
Rated current per meter
0,75 A
Dimensions
Length
5000 mm
Width
10 mm
Height
1,5 mm
