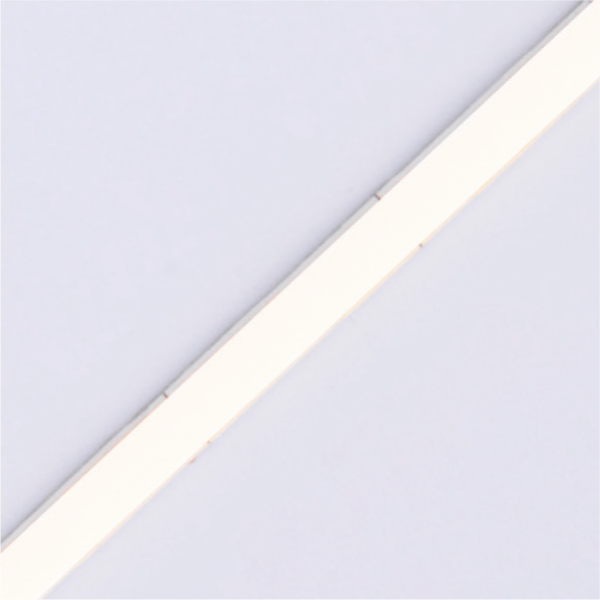

LED strip COLORS COB-24V-IP20 9W 680Lm 3000K 5m (DP7-24V-4mm-WW)

LED strip COLORS COB-24V-IP20 9W 680Lm 3000K 5m (DP7-24V-4mm-WW)
COLORS
$7.00
Add to Compare
Add to Wishlist
Type of goods
LED strip
Waterproof Rating
IP20
LED type
COB
LED Quantity na 1 m
420 pcs
Warranty period
5 years
Light colour
Warm white
Luminous flux na 1 m
680 Lm
Supply voltage
24V
all characteristic

COB LED strip COLORS DP7-24V-4mm-WW

  • Wide beam angle provides uniform illumination.
  • Super-slim width of 4 millimeters for narrow spaces.
  • Free connection using solderless connectors.

Technical specifications:

  • Input voltage: DC24V;
  • Maximum power: 10W/meter;
  • Typical power: 9W/meter;
  • LEDs per meter: 420;
  • Flexible printed circuit board (FPCB): 2oz copper;
  • Operating temperature: -25~40°C, maximum case temperature (Tc): 75°C;
  • Color rendering index: CRI 90;
  • Luminous flux: 680 lumens/meter;
  • Cut ratio: 16.6 millimeters;
  • Maximum serial connection: 2500 millimeters;
  • Protection degree: IP20;
  • Product certification: UL;
  • Cable length: 2.5 meters;

Warranty: 5 years.

General
Type of goods
LED strip
Waterproof Rating
IP20
LED type
COB
LED Quantity na 1 m
420 pcs
Cutting frequency
17 mm
Warranty period
5 years
Lighting
Light colour
Warm white
Colour temperature
3000K
Colour rendering index, CRI (Ra)
90
Luminous flux na 1 m
680 Lm
Effectiveness
76 Lm/W
Electrical
Supply voltage
24V
Power per 1 m
9 W
Rated current per meter
0,40 А
Dimensions
Length
5000 mm
Width
4 mm
Height
1,6 mm
